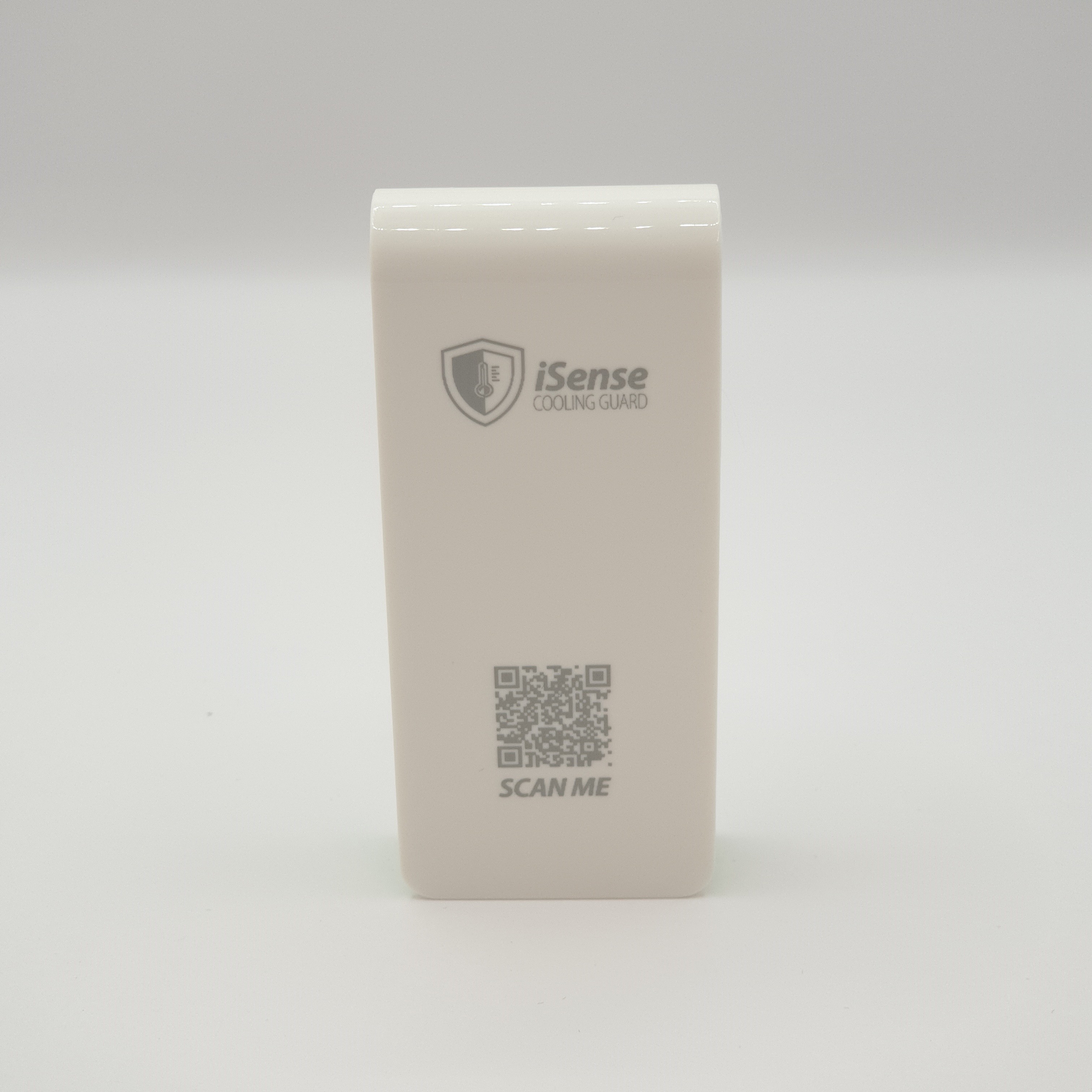

iSense Sensor

Product information

24 € (Excl. BTW)

Reviews

4 out of 5 stars

Description

Onze sensoren (Wireless ZigBee) zijn de draadloze verbinding tussen uw koeling(en) en de gateway(s). De sensor meet de omgevingstemperatuur en luchtvochtigheid daar waar u dit wilt meten.

De sensor verbruikt weinig batterij, is tool-vrij te installeren en meteen klaar voor gebruik na aankoop.

Onze sensoren zijn geschikt voor gebruik binnen en moet worden bediend met

Additional details

  • Low power consumption
  • Easy Installation
  • Real-time and Historical Records
  • High measurement accuracy
  • Battery powered

Battery type CR2032 3V
Battery Life 2 years
Voltage range 2.3V-3.6V
Sleeping current <15μA
Temperature accuracy 0.5℃
Humidity accuracy 4%
Working temperature -20℃ ~ +65℃
Working Humidity <95%RH
Pairing button 1
Sensor chip SI7020
Certification FCC, CE
Zigbee Performance
  • TX Power: 17.5dBm
  • Range: 100 meters minimum, open filed
  • Receiving Sensibility:-94dBm
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz):2401.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
  • Bandwidth (MHz):5MHz
  • Modulation: OQPSK
Bluetooth Performance
  • TX Power: 17.5dBm
  • Bluetooth: 17.5dBm
  • Range: 150 meters minimum, open filed
  • Receiving Sensibility: -80dBm@0.1%BER
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz):2401.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
  • Bandwidth (MHz):2MHz
  • Modulation: GFSK
